Soudal Singapore product

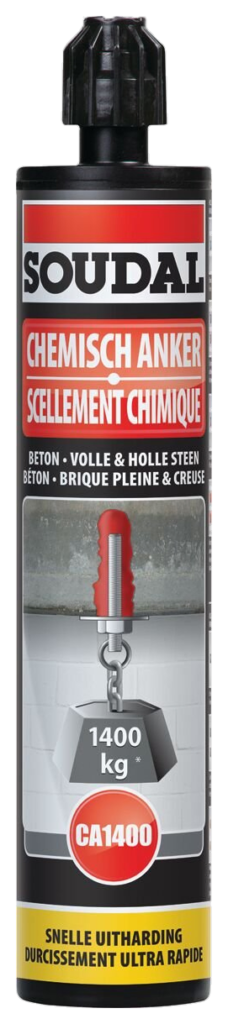

A two-component, styrene-free anchoring resin for threaded rods, studs and reinforcing bars in suitable solid or hollow mineral materials. The allowable load depends on the base material, hole, fixing design and installation.
Anchoring threaded rods, studs, reinforcing bars and profiles in suitable concrete, masonry and hollow units, including work close to edges where the fixing design permits.
The “up to 1,400 kg” range name is not a design load. Select the allowable load for the actual base material, anchor diameter, embedment, edge distance, spacing, hole cleaning, temperature and cure time.
These examples show typical tasks and application methods. The product guidance below covers surface preparation and application.
Use the guidance and documents for your chosen product. Contact us if the English TDS or SDS you need is not listed below.
Check the base material, anchor size, embedment, edge distance, spacing and load against the current technical data and the project’s fixing design.
Drill the hole to the specified diameter and depth using the drilling method stated for the base material.
Clean the hole thoroughly using the blow, brush and blow sequence given in the technical data sheet. Residual dust is a common cause of reduced load capacity.
Fit a new static mixer, discard resin until the colour is even, then inject from the base of the hole upwards so no air is trapped. Use an extension and a sieve sleeve where the substrate requires one.
Insert the clean rod or bar with a slow twisting motion within the stated working time, then leave the anchor undisturbed and unloaded for the full curing time stated for the material temperature.
Find the current technical and safety information available for this product, along with relevant test or approval documents.
Safety data sheets are market-specific. Australian editions provide regional product information. Request the current Singapore SDS or any document not listed here from PFE Technologies.
These practical points help you achieve a reliable result.
