Aquaswell
SealantsWaterproofing Specialist formulation

Soudal Singapore product

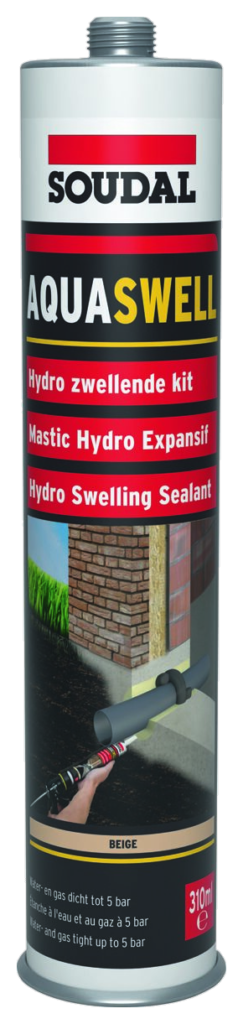

Aquaswell

A flexible polyurethane sealant that swells in contact with water. It is used in water- and gas-tight pipe, cable and concrete-joint details that provide the required confinement.

Ask about this product

Product description

Where it fits

Use Aquaswell around suitable pipe and cable penetrations, construction joints and concrete details designed to confine a water-swelling polyurethane seal.

Key properties

  • Water- and gas-tight to 5 bar under the DVGW VP601 test scope
  • Swells up to 450% of its original volume under constant water load
  • Remains elastic after curing and returns towards its original shape when water contact is removed

Designing the detail

To achieve the tested pressure rating, follow the system guidance for the joint size, backing and surface preparation.

Application gallerySee the product in use.

These examples show typical tasks and application methods. The product guidance below covers surface preparation and application.

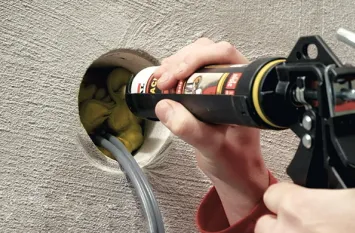

Applying Aquaswell around a pipe and cable penetration
Filling an irregular pipe and cable penetration with Aquaswell.

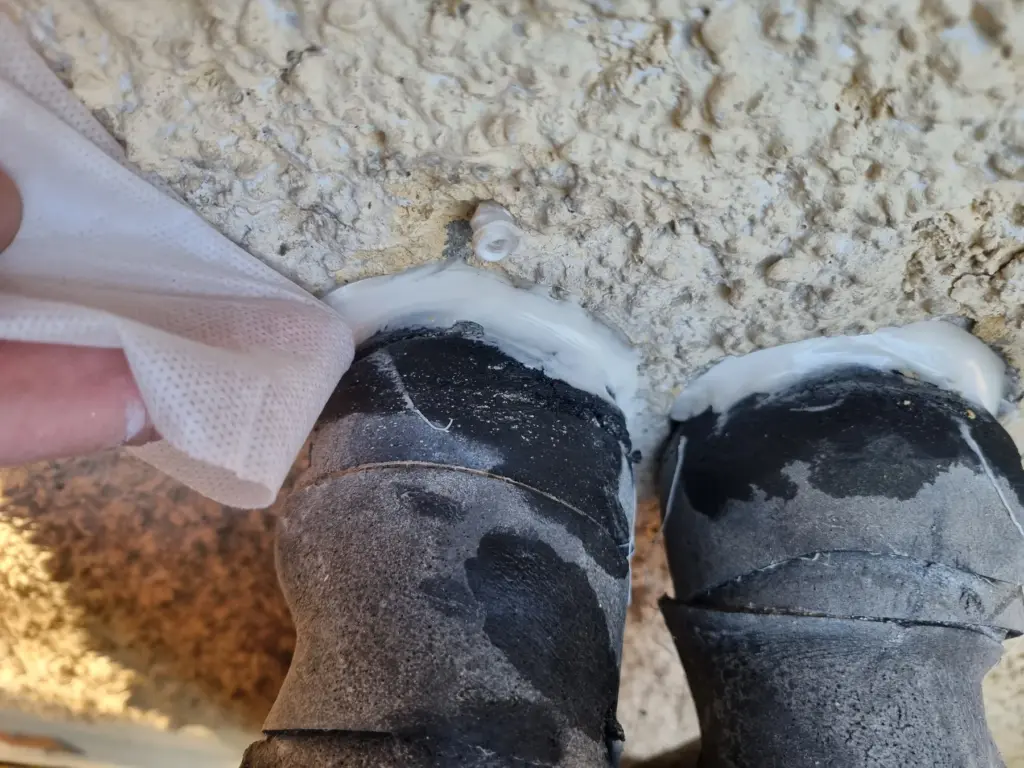

Preparing a geothermal pipe penetration for sealing with Aquaswell
Preparing a pipe penetration before applying Aquaswell.

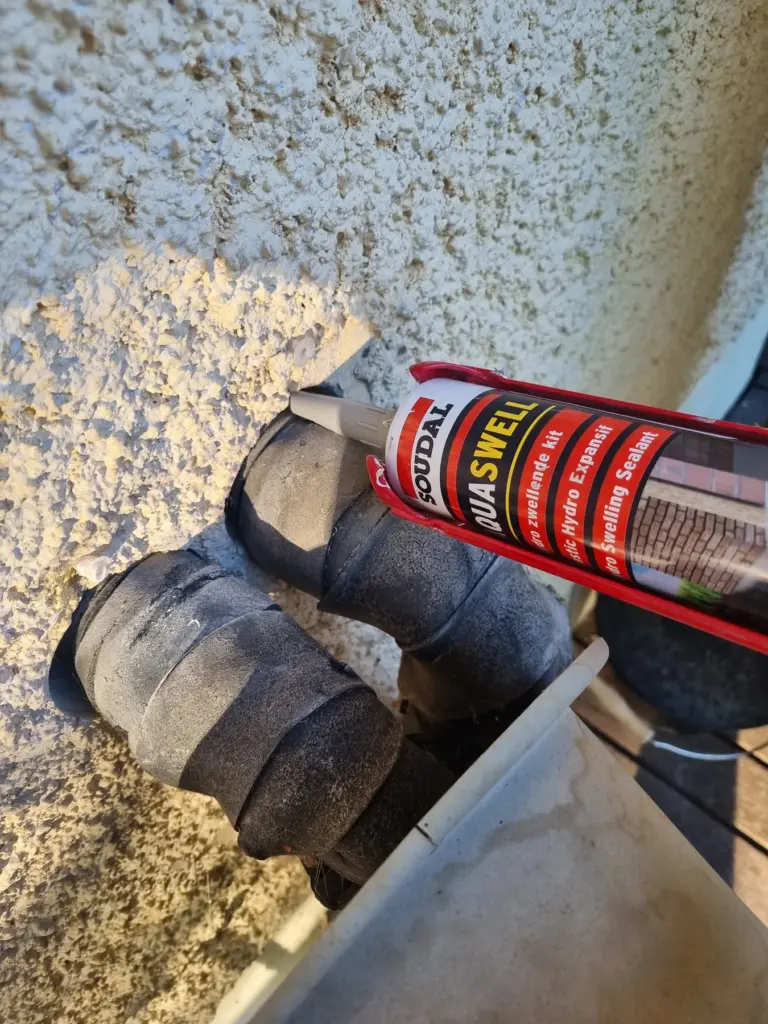

Applying Aquaswell around a geothermal heating pipe penetration
Aquaswell applied around a geothermal heating pipe penetration.

Preparation and applicationFollow the product instructions step by step.

Use the guidance and documents for your chosen product. Contact us if the English TDS or SDS you need is not listed below.

  1. 01

    Check that a water-swelling seal suits the surface, expected water pressure and available space, and that the design will confine it as it expands.

  2. 02

    Prepare sound, clean surfaces and remove dust, grease, laitance and loose material so the product is enclosed by solid substrate.

  3. 03

    Apply a continuous bead or fill the specified section without voids or trapped air, keeping the distance from the substrate edge stated in the technical data sheet.

  4. 04

    Install the backing, packing and closing detail shown in the system guidance. Without confinement, the product will expand but will not seal.

  5. 05

    Keep running water away until the product has reached the state described in the technical data sheet.

Product videosSee how the product is used.

Product documentsTechnical and safety documents.

Find the current technical and safety information available for this product, along with relevant test or approval documents.

PDF Official — Current technical data sheet Open document → PDF Official — Current safety data sheet — Australia edition Open document →

Safety data sheets are market-specific. Australian editions provide regional product information. Request the current Singapore SDS or any document not listed here from PFE Technologies.

For the best resultMatch the product to the materials and application.

These practical points help you achieve a reliable result.

Explore this product on Soudal Global →

  • A water-swelling seal depends on confinement. Unrestrained product expands without developing a seal.
  • Choose the product for the expected water pressure, the available space and the complete system build-up.
  • If the detail will repeatedly dry and become wet again, check that the current documents cover that exposure.
  • Before starting, read the current technical and safety information for the product.
  • If the materials, coatings or site conditions are unfamiliar, test adhesion and compatibility on a prepared area first.

Related productsMore Sealants products.

Explore the category →
Sealants

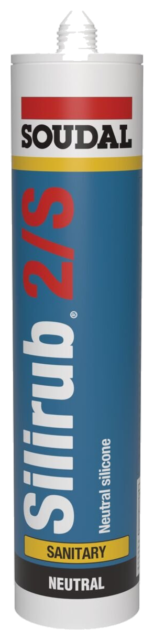

Silirub 2/S

A low-modulus neutral-cure sanitary silicone for high-humidity joints, glazing and compatible building materials. It contains a fungicidal additive and is not paintable.

View product
Sealants

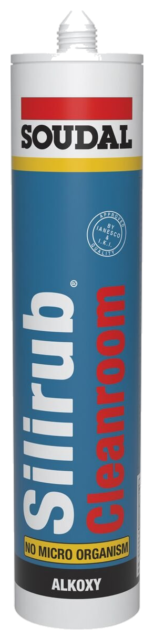

Silirub Cleanroom

A neutral-cure silicone for cleanrooms, laboratories, industrial kitchens, food-processing spaces and other critical interiors where the project requires supporting test reports.

View product
Sealants

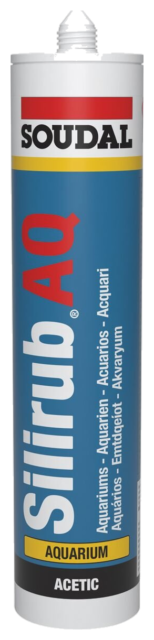

Silirub AQ
