Soudafoam Gun
PU foams Polyurethane

Soudal Singapore product

Soudafoam Gun

A one-component, gun-applied expanding PU foam for controlled filling, insulation and sealing of suitable construction gaps.

Ask about this product

Product description

Features

  • Super high yield formulation to achieve large running metres and filling capacities
  • Requires a PU foam gun (sold separately) for application and to achieve superior foam properties and yield
  • Self-expanding to easily fill up large gaps and cavities
  • Open-cell technology for faster curing times, better insulation, and higher strength
  • Excellent dimensional stability means no excessive curing and post-expansion pressure
  • Good dimensional stability when applied and cured as directed
  • Can even be used as an insulating adhesive for mounting and bonding
  • Store within the stated temperature range and use before the marked expiry date
  • Made in Europe by one of the world’s largest PU foam manufacturers

Applications

  • Installation of window frames
  • Installation of doorframes
  • Filling of cavities
  • Sealing of all openings in roof constructions
  • Creation of a soundproof screen
  • Mounting and sealing of window doorframes
  • Connecting of insulation materials and roof constructions
  • Application of a soundproofing layer on motors
  • Improving thermal insulation in cooling systems
  • Installation of air conditioners
  • Bonding of insulation panels

Application gallerySee the product in use.

These examples show typical tasks and application methods. The product guidance below covers surface preparation and application.

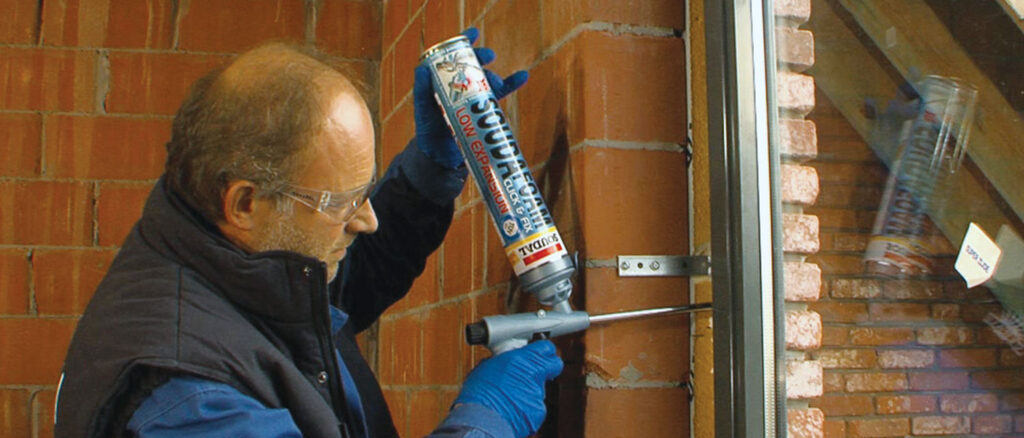

Applying gun-grade PU foam around a window frame
Controlled gun application around a prepared window frame.
Consistent gun-grade PU foam bead structure
Gun dispensing helps maintain a controlled, consistent bead.

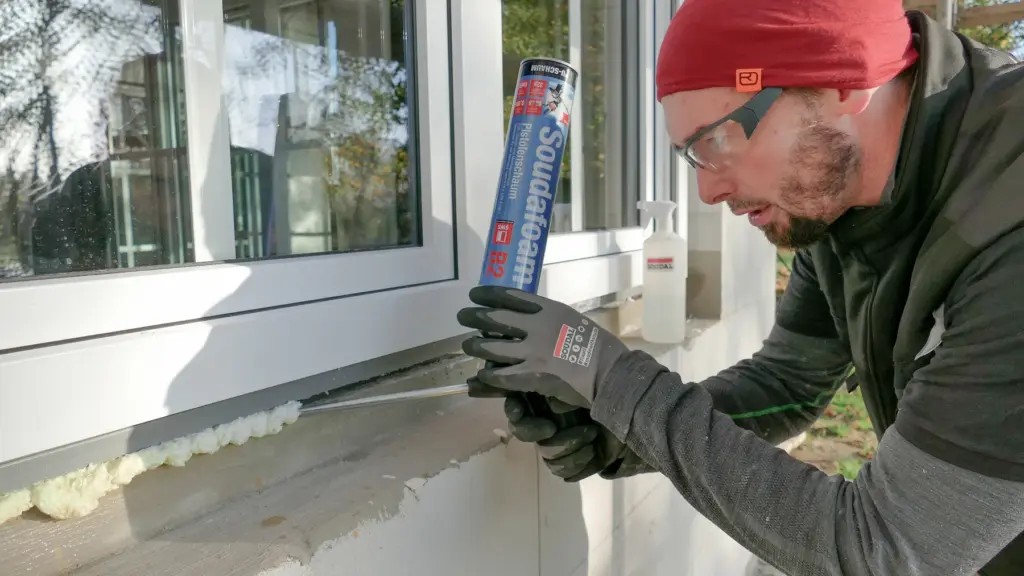

Applying Soudafoam Gun around an exterior window joint
Controlled application of Soudafoam Gun around a window installation joint.

Preparation and applicationFollow the product instructions step by step.

Use the guidance and documents for your chosen product. Contact us if the English TDS or SDS you need is not listed below.

  1. 01

    Read the current SDS, ventilate the work area and wear the specified gloves and eye protection before using an aerosol PU foam.

  2. 02

    Ensure the surfaces are stable and free from dust and grease. Where appropriate for the selected foam, a light water mist can support moisture curing.

  3. 03

    Shake the can thoroughly, connect the correct straw or foam gun, and dispense with the can in the orientation shown in the instructions.

  4. 04

    Fill only part of the cavity so the foam can expand. For deep gaps, work in layers and follow the product guidance for moistening between layers.

  5. 05

    Remove fresh foam with the specified cleaner. Once cured, trim mechanically and protect exposed foam from sunlight and weather.

Product videosSee how the product is used.

Product documentsTechnical and safety documents.

Find the current technical, safety and supporting documents available for this product.

Product documentsRequest the English TDS or SDS.

Contact the Singapore team for the correct technical, safety or supporting document for this product.

Request product documents

Additional resourcesProduct guides and technical material.

Catalogue Soudafoam Gun catalogue Open PDF → Technical data sheet Soudafoam Gun technical data sheet Open PDF → Test report ift Rosenheim joint sound-reduction report Open PDF → Application guide How to use PU foams Open PDF → Technical introduction PU foam technical introduction Open PDF →

For the best resultMatch the product to the materials and application.

These practical points help you achieve a reliable result.

  • Use mechanical fixings wherever the assembly design calls for them.
  • Finish cured foam with a suitable sealant, coating or building finish for UV and weather protection.
  • For fire-resistant work, reproduce the documented joint or penetration configuration and supporting materials.
  • For the best result, follow the current technical and safety information for the selected product.
  • For unfamiliar materials, coatings or site conditions, test adhesion and compatibility on the prepared surface first.
